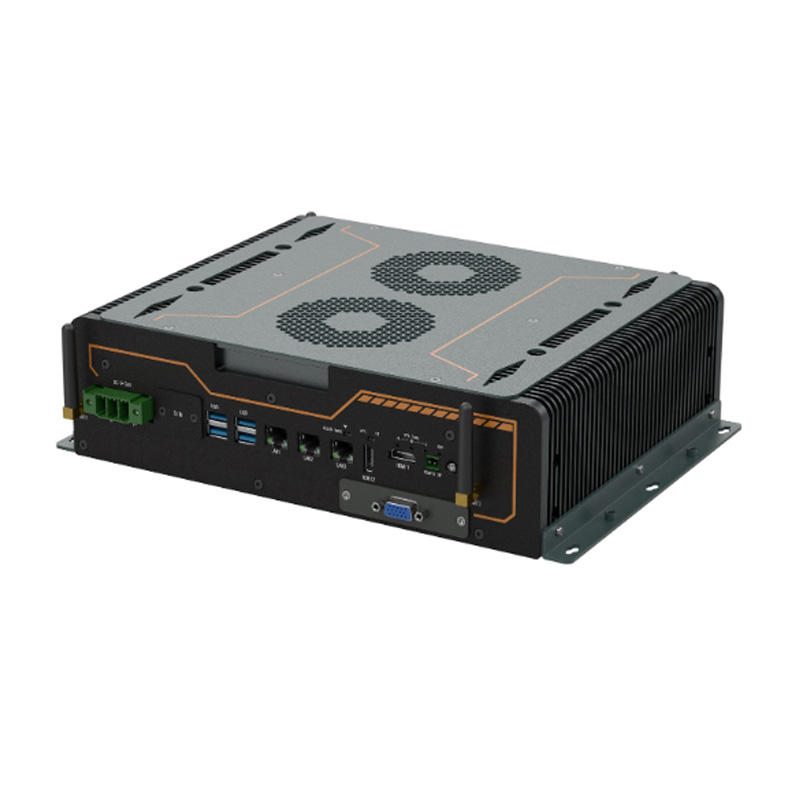

The BRAV-7601/T001 from JHCTECH is a rugged, fanless industrial Edge AI computer designed for machine vision, intelligent vehicles, medical imaging and other demanding edge applications. Featuring 10th Gen Intel Comet Lake processors, an MXM 3.1 interface for an optional GPU or AI accelerator, and three 2.5 Gigabit Ethernet ports, the system provides powerful and flexible local processing for demanding AI and image-processing workloads.

Key Features

• Intel 10th Gen Comet Lake – Celeron, Pentium or Core i3/i5/i7/i9
• MXM 3.1 PCIe x16 interface for optional GPU or AI accelerator modules up to 190W
• 3 × 2.5 Gigabit LAN ports
• 4 × USB 3.2 and 2 × USB 2.0
• 8-bit programmable digital I/O
• M.2 expansion for NVMe, Wi-Fi 6, Bluetooth, 4G LTE and 5G NR
• M.2 NVMe plus 2 × swappable 2.5″ SATA bays with RAID 0/1
• Full-size Mini PCIe expansion
• Wide 9–36V DC input with reverse-polarity, overcurrent and overvoltage protection
• Fanless industrial cooling design
• Up to 64GB DDR4 memory

Built for demanding edge applications

• Edge AI and local AI inference
• High-precision machine vision and quality inspection
• C-V2X and specialised vehicle systems
• Medical imaging and diagnostic equipment
• Industrial automation and visual logistics
• Multi-camera image-processing applications

With flexible CPU and GPU options, three high-speed 2.5GbE interfaces and extensive storage, wireless and industrial I/O expansion, the BRAV-7601/T001 provides a powerful platform for machine vision, Edge AI and other compute-intensive applications where data needs to be processed locally.
