TAICENN TBOX-3T20 - Fanless Industrial Vision Box PC with Intel 11th Gen CPU

The TAICENN TBOX-3T20 is a high-performance, fanless industrial PC designed for machine vision, industrial automation, and intelligent networking applications. Built around the Intel 11th Gen Tiger Lake UP3 Core i5-1155G7 quad-core processor, it delivers exceptional computing and graphics performance in a compact and rugged enclosure.

Technical Specifications

• CPU: Intel Core i5-1155G7 (11th Gen, Tiger Lake UP3)
• Memory: 1x DDR4 SO-DIMM socket, supports up to 32GB
• Storage:
  • 1x M.2 2280 NVMe (PCIe x4)
  • 1x 2.5” SATA SSD/HDD
• Display Outputs:
  • 1x HDMI
  • 1x VGA (dual independent display support)
• Expansion: 1x Mini-PCIe slot

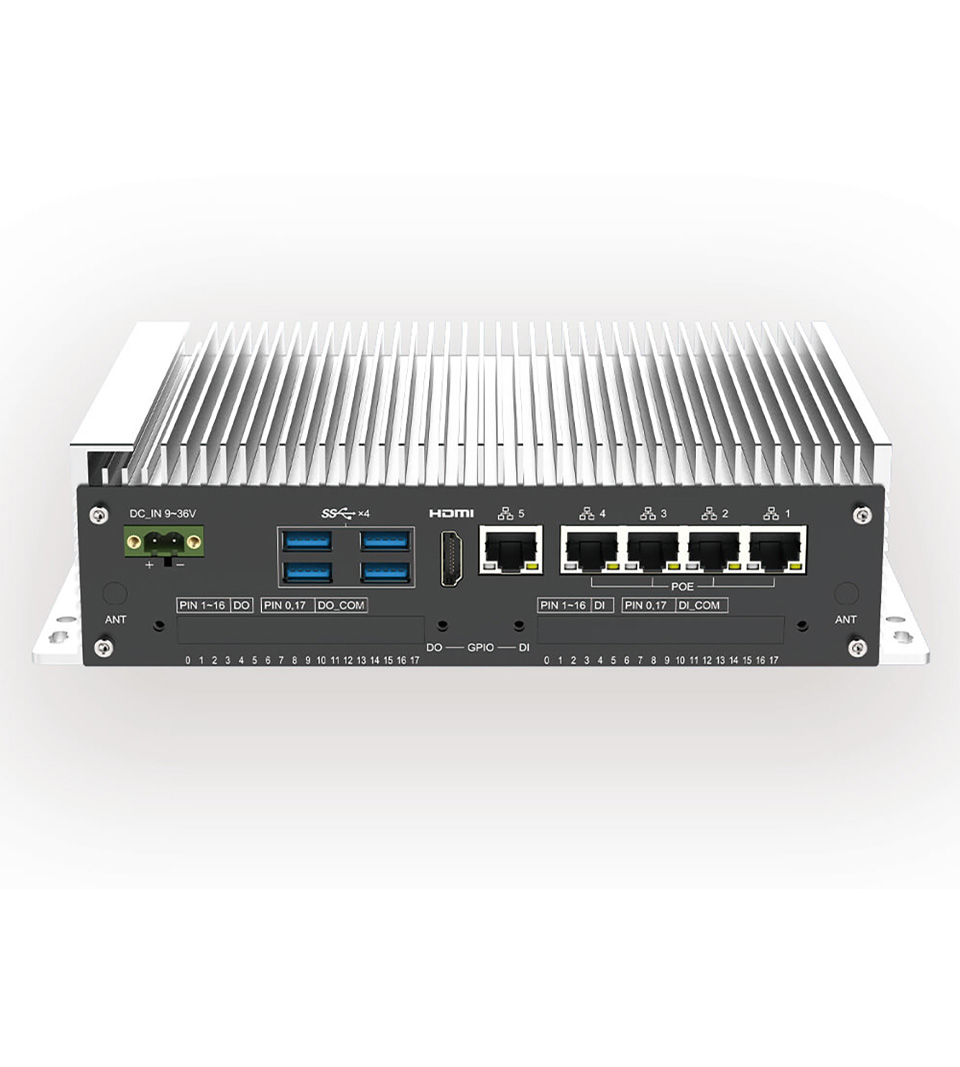

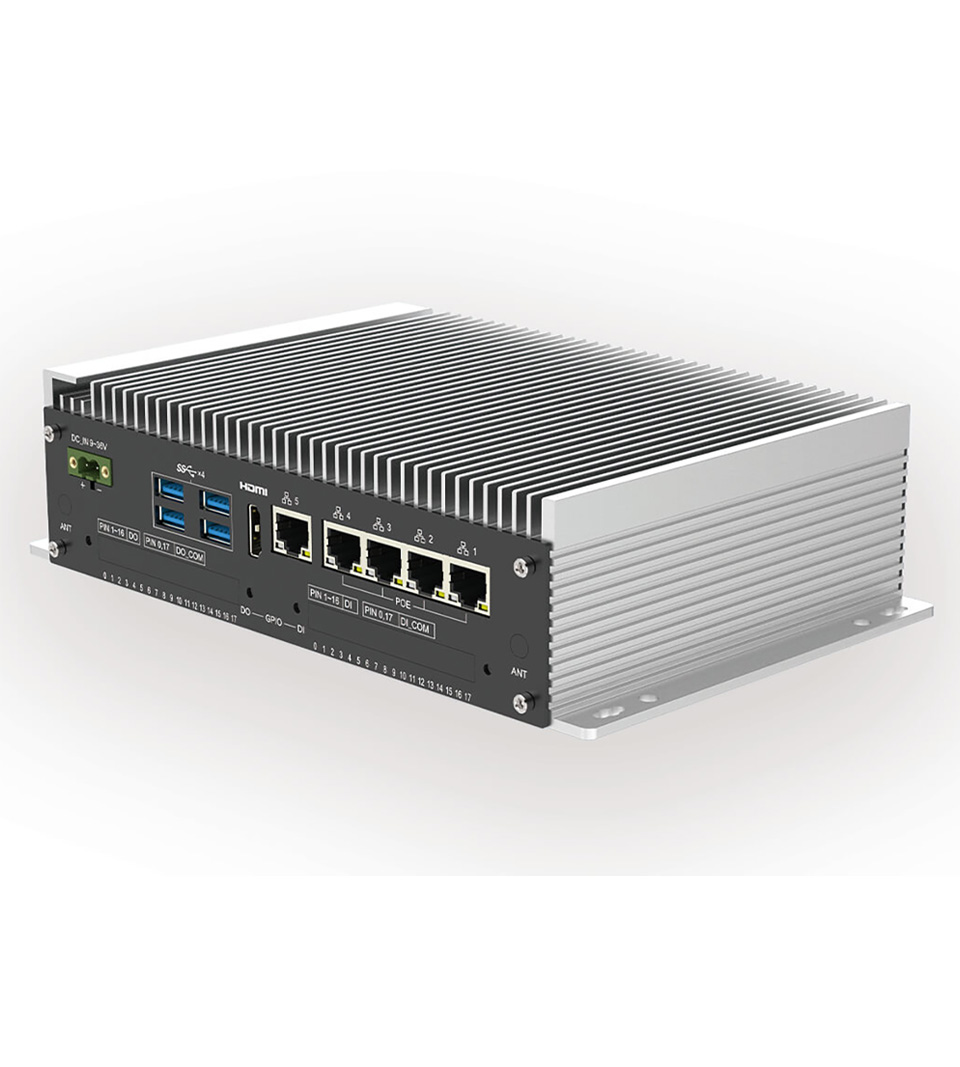

• I/O Interfaces:
  • 5x Intel GbE LAN ports (4x with PoE)
  • 4x USB 3.1, 2x USB 2.0
  • 2x COM ports (1x RS232, 1x RS485)
  • Optional: 32x GPIO (on TBOX-3T20D model)
• Power Input: DC 9~36V with protection against over-voltage, over-current, and reverse polarity
• Operating Temperature: -20°C to +60°C
• Construction: Fully sealed aluminum enclosure for dust resistance and passive cooling

Designed for Demanding Industrial Applications

With its sealed fanless design, the TBOX-3T20 ensures reliable operation in dusty and vibration-prone environments. A large aluminum fin heatsink enables effective heat dissipation without moving parts, contributing to a longer system lifespan and minimal maintenance.

Ideal for Applications Such As:

• Machine vision systems
• Industrial automation and control
• Intelligent transportation systems
• Medical imaging and diagnostics
• Textile manufacturing machinery
• Rail and public transportation systems
