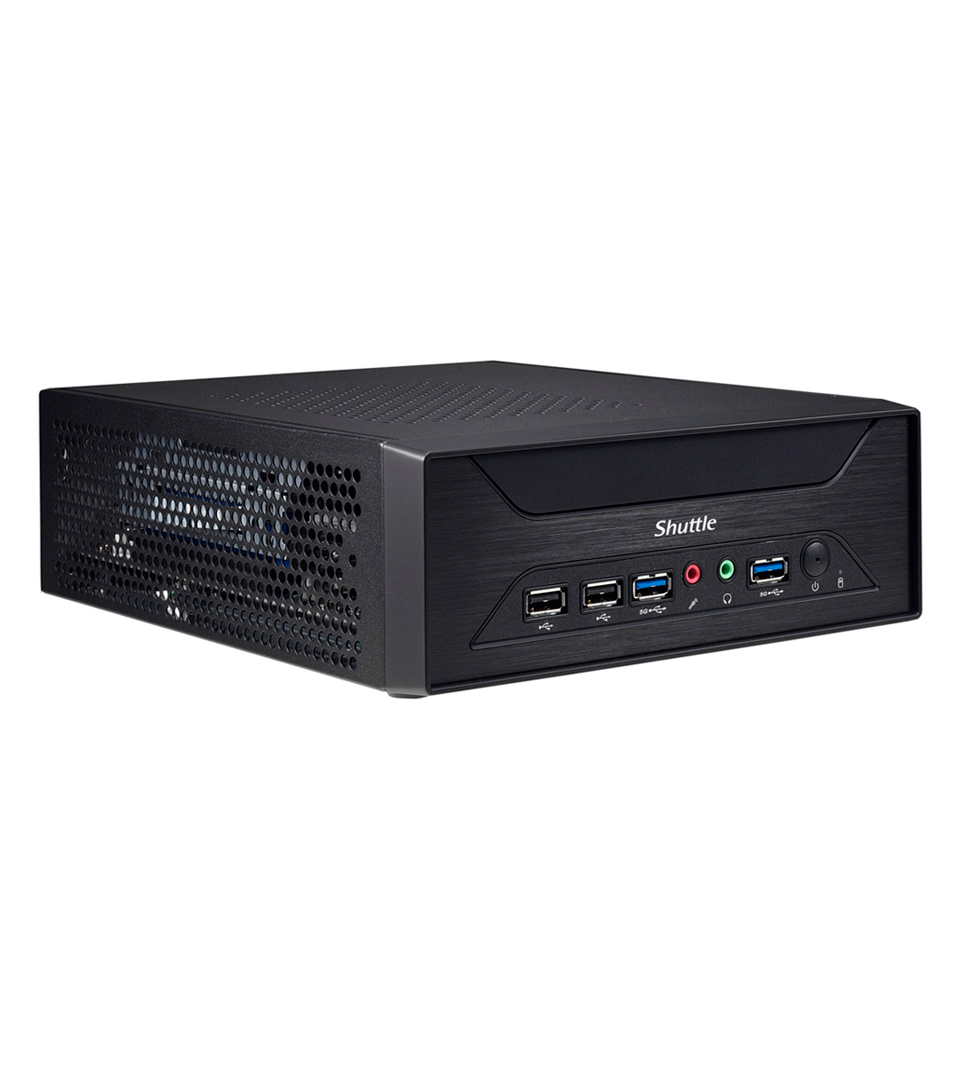

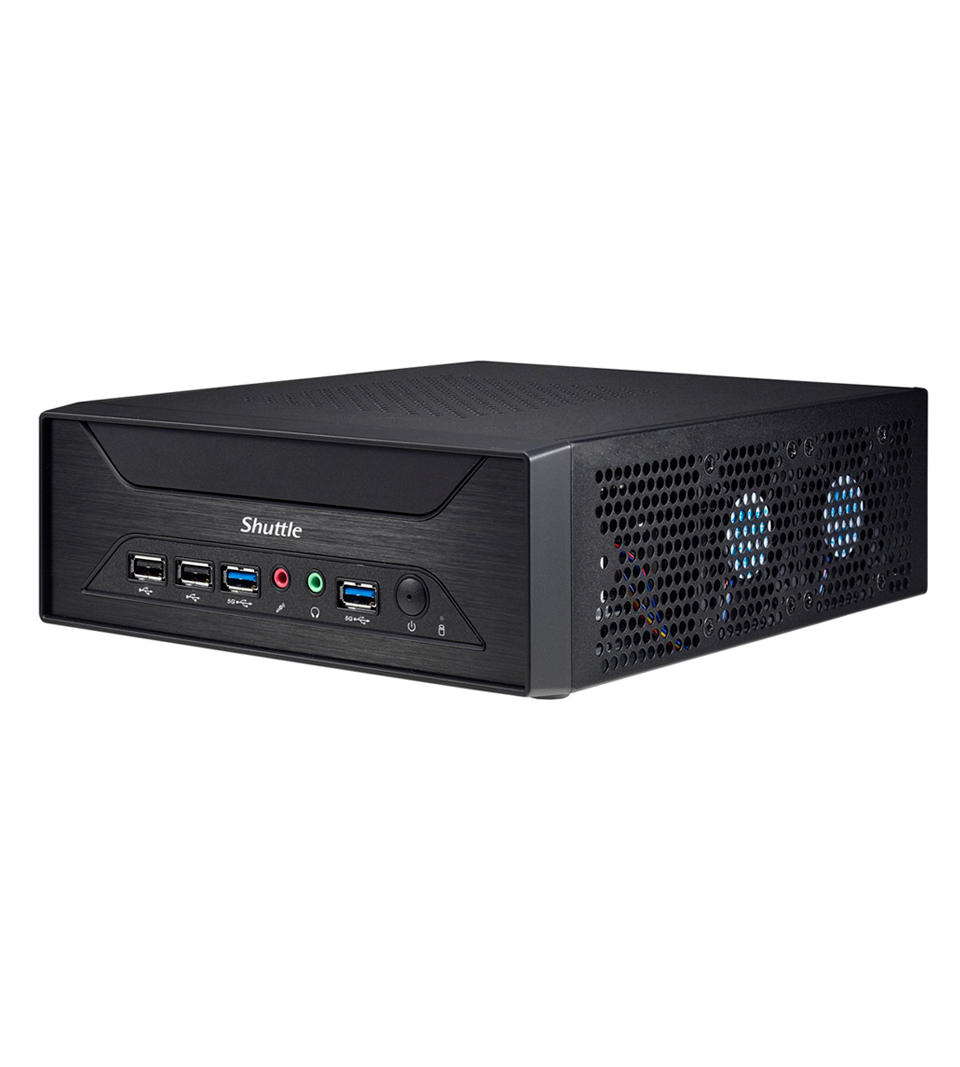

Shuttle XPC Slim XH510G – Compact 3-Liter PC with PCIe Expansion

The Shuttle XPC Slim XH510G is a versatile 3-liter barebone PC, designed to accommodate single-slot PCI-Express expansion cards. Compatible with 10th and 11th Gen Intel® Core™ processors, it offers robust performance in a compact form factor. This makes it ideal for applications such as video wall presentations, graphics workstations, media capturing, surveillance, POS systems, and industrial automation.

Key Features:

• Processor Support: Supports Intel® 10th/11th Gen Core™, Pentium®, and Celeron® processors (LGA1200, up to 65W TDP). ​
• Memory Capacity: Two SO-DIMM slots supporting up to 64 GB DDR4-3200 RAM. ​
• Expansion Slot: One PCIe x16 4.0 slot for single-slot expansion cards (max. dimensions: 208.5 x 120 x 30 mm). ​
• Storage Options:
  • One 2.5" SATA bay for HDD/SSD (up to 9.5 mm height).​
  • Two M.2 2280 slots: one supporting PCIe x4 NVMe SSDs, the other supporting SATA SSDs.​

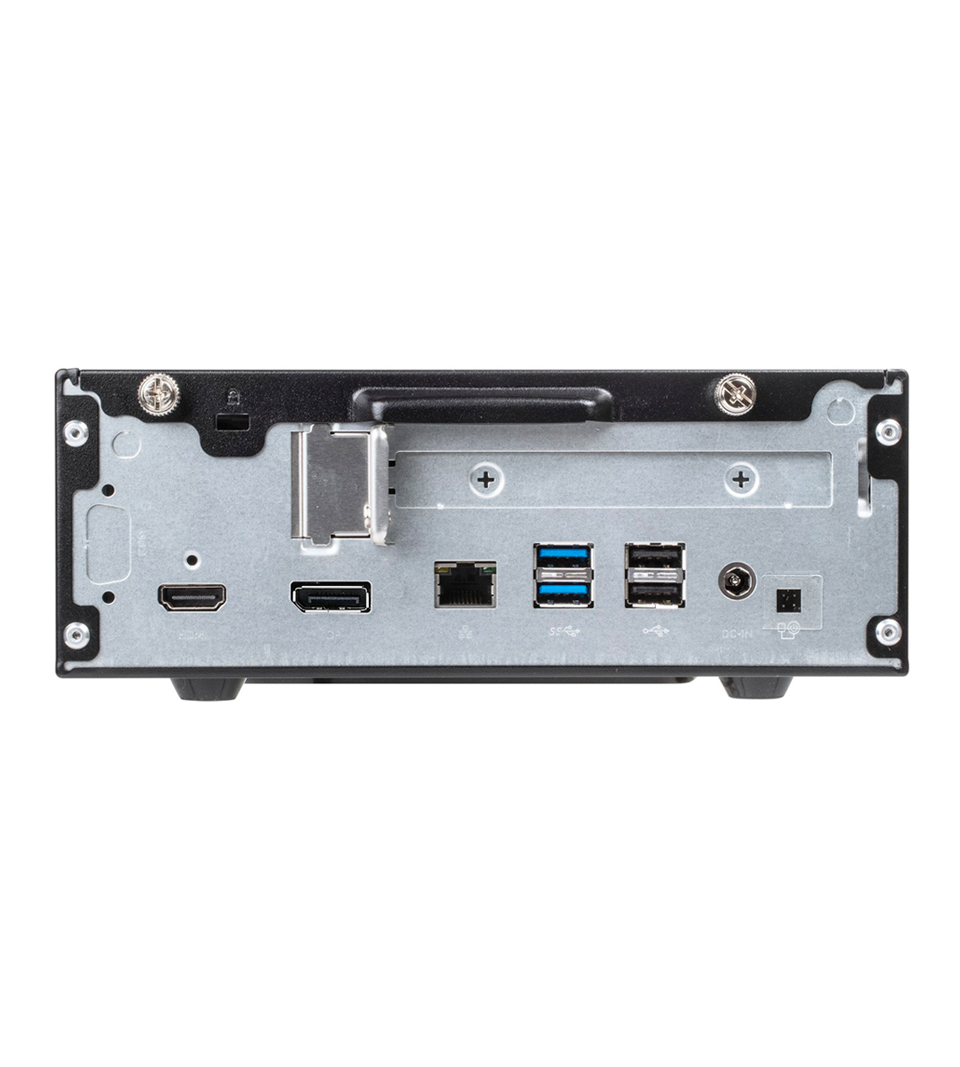

• Display Outputs: Supports dual displays via HDMI 2.0a and DisplayPort 1.4, both capable of 4K UHD at 60Hz. ​
• Connectivity:
  • Four USB 3.2 Gen 1 ports.​
  • Four USB 2.0 ports.​
  • Intel® Gigabit LAN (RJ45).​
  • Optional RS232 COM port and VGA port via accessories.​
• Cooling System: Shuttle’s exclusive heat-pipe cooling module with smart fan design ensures efficient thermal management for 24/7 operation. ​
• Power Supply: External 180W, 19.5V power adapter.​

Ideal for:

• Digital Signage: Compact size and dual-display support make it suitable for dynamic content delivery.​
• Industrial Automation: PCIe expansion allows integration of specialized control cards.​
• Surveillance Systems: Reliable 24/7 operation with robust connectivity options.​
• Point-of-Sale (POS) Systems: Compact design with ample connectivity for peripherals.

Datasheet: Barebone XPC slim XH510G
