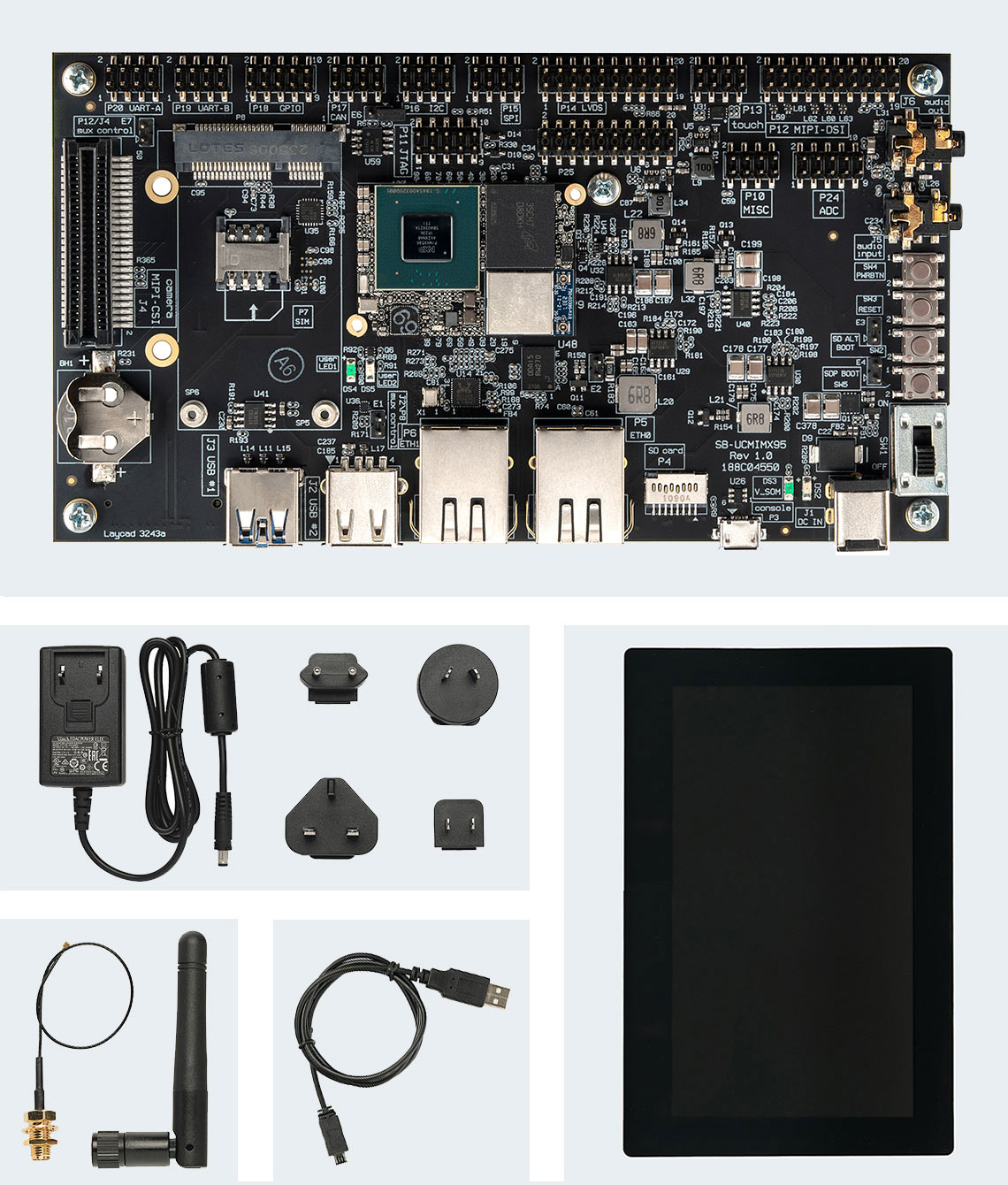

Complete development platform for the UCM-iMX95 System-on-Module, designed to accelerate evaluation and carrier-board design.

Includes:

• UCM-iMX95-C1800HM-D8-N64-E-WB-H SOM
• SB-UCMIMX95 carrier board
• 12 V PSU, adapters and cables
• Optional 7" LVDS or 5" MIPI-DSI display
• Optional Quectel EG25G LTE modem
• Direct technical support from Compulab R&D

Key Features:

• 2× GbE, USB 3.0 + 2.0, LVDS, 2× MIPI-CSI, audio
• mini-PCIe with SIM socket for LTE
• UART, SPI, I²C, CAN-FD, ADC, GPIO on 100-mil headers
• JTAG, M33 debug console, NXP SDP/UUU port

Developer Benefits:

• Full design package (schematics, BOM, PCB layout)
• Proven reference for carrier-board design
• Free design review and driver adaptation for custom LCDs
• BSP with Yocto Project, Debian Linux, and RTOS
• Supports Docker, Azure IoT, Node-RED, and Mender OTA
