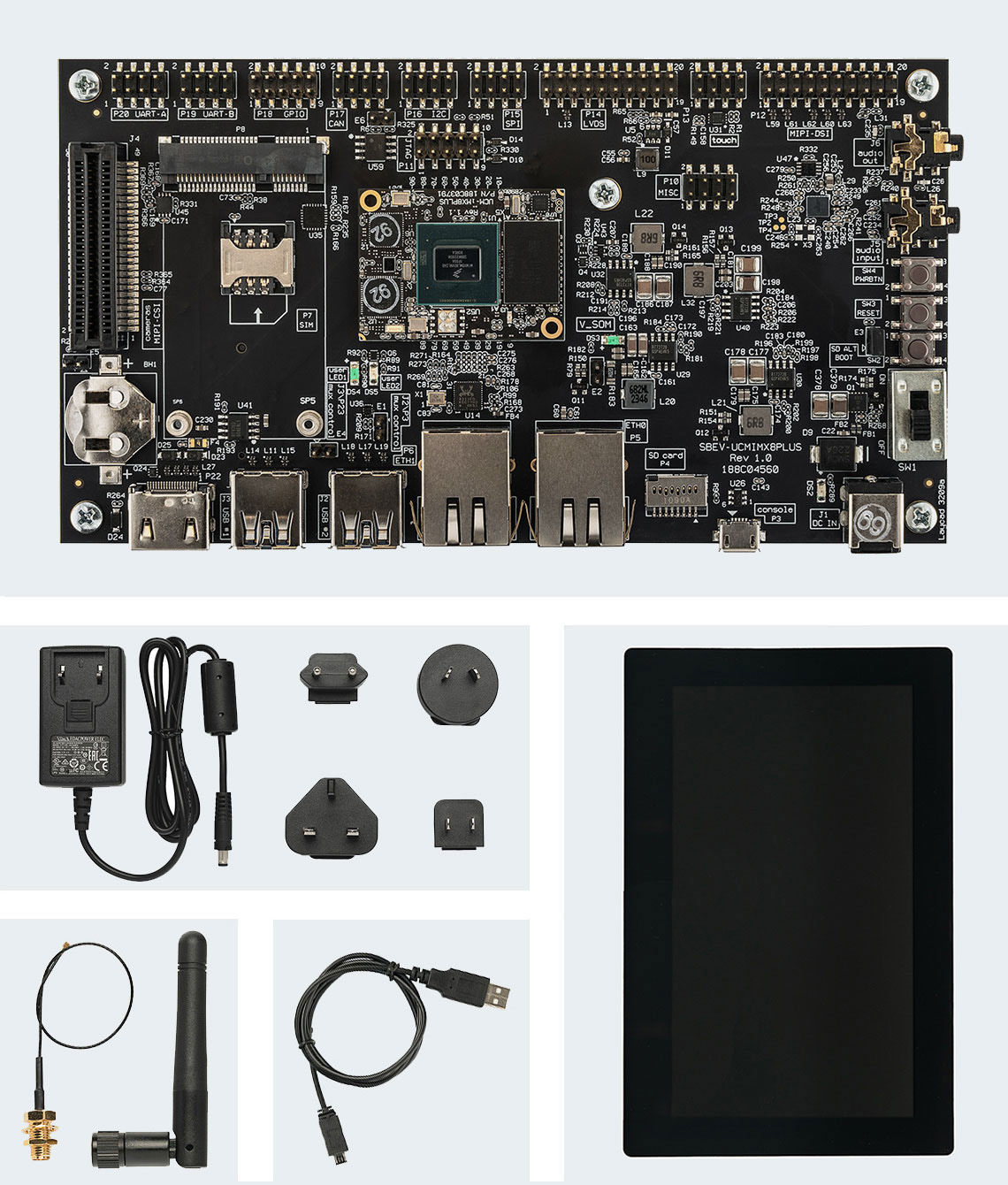

A complete evaluation platform built around the UCM-iMX8M-Plus System-on-Module

-designed for rapid prototyping, embedded computing, and custom carrier-board development.

Includes:

• UCM-iMX8PLUS-C1800QM-D4-N32-E-H SoM.
• SBEV-UCMIMX8PLUS carrier-board.
• 12 V power supply unit, cables and adapters.
• Optional: 7″ LVDS or 5″ MIPI-DSI LCD panel.
• Optional: Quectel EG25G LTE modem.
• Technical support directly from Compulab R&D engineers.

Key Features

• 2× Gigabit Ethernet, 2× USB, WiFi & Bluetooth.
• Display & camera interfaces: LVDS, HDMI, 2× MIPI-CSI and analog audio.
• mini-PCIe slot with SIM socket for 4G/LTE modules.
• I/O header access: 2× UART, SPI, I²C, CAN-FD, GPIO via 100-mil headers.
• Full design package: schematics, BOM, PCB layout for custom board design.
• Robust software & OS support: full Board Support Package (BSP) with ready-to-run Linux images.
