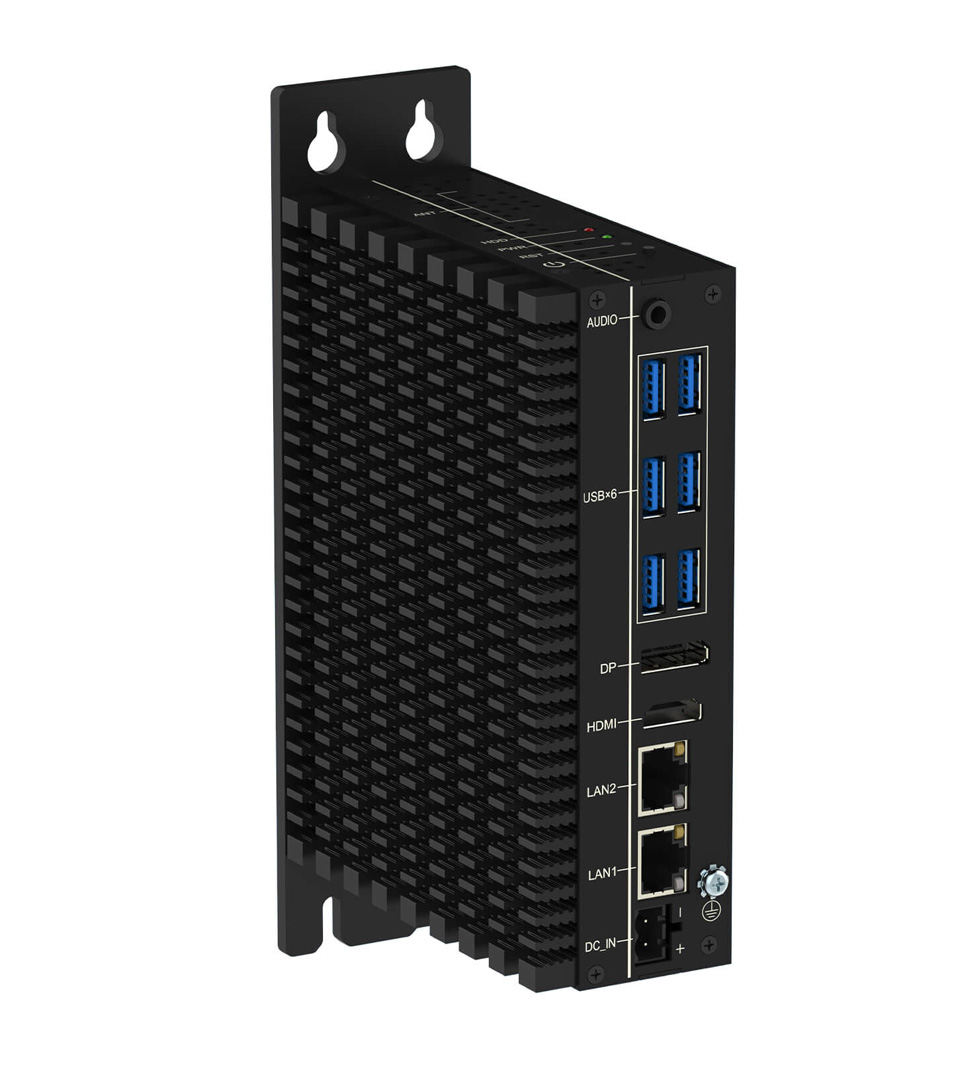

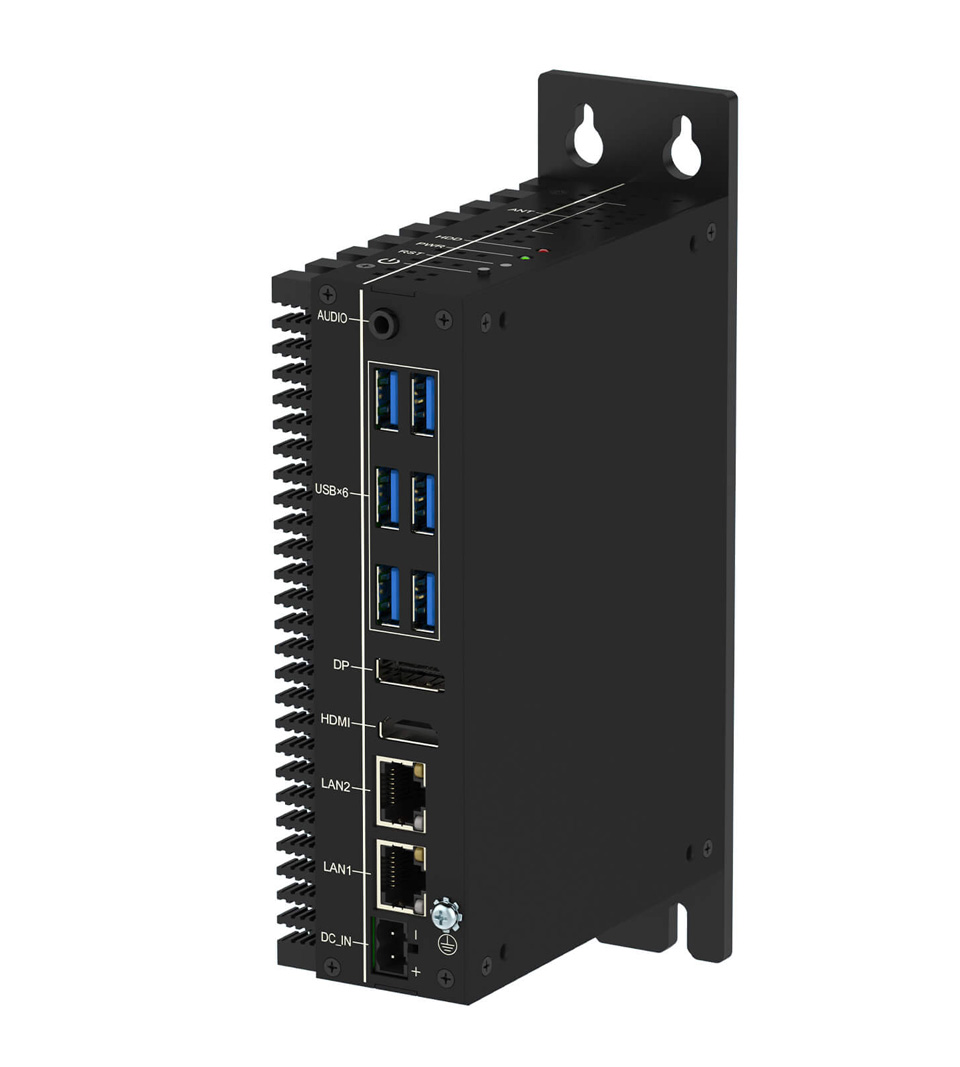

TAICENN TBOX-6D25 – Slim, Fanless Industrial Box PC with 12th Gen Intel® Core i5

The TAICENN TBOX-6D25 is a high-performance, fanless industrial box PC designed for modern control systems, embedded computing, and IIoT edge applications. Powered by a 12th Gen Intel® Core™ i5-1235U processor (Alder Lake-U), the system delivers outstanding computing power with exceptional energy efficiency.

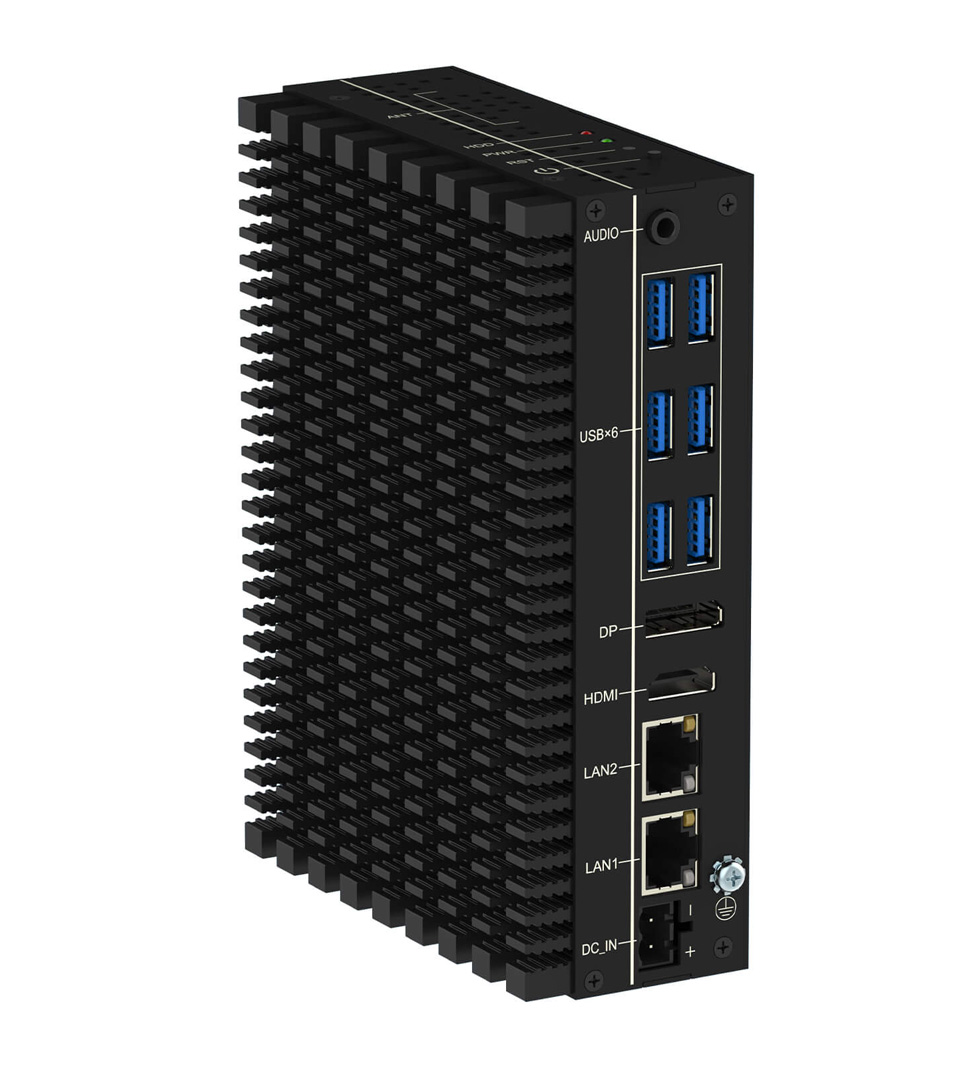

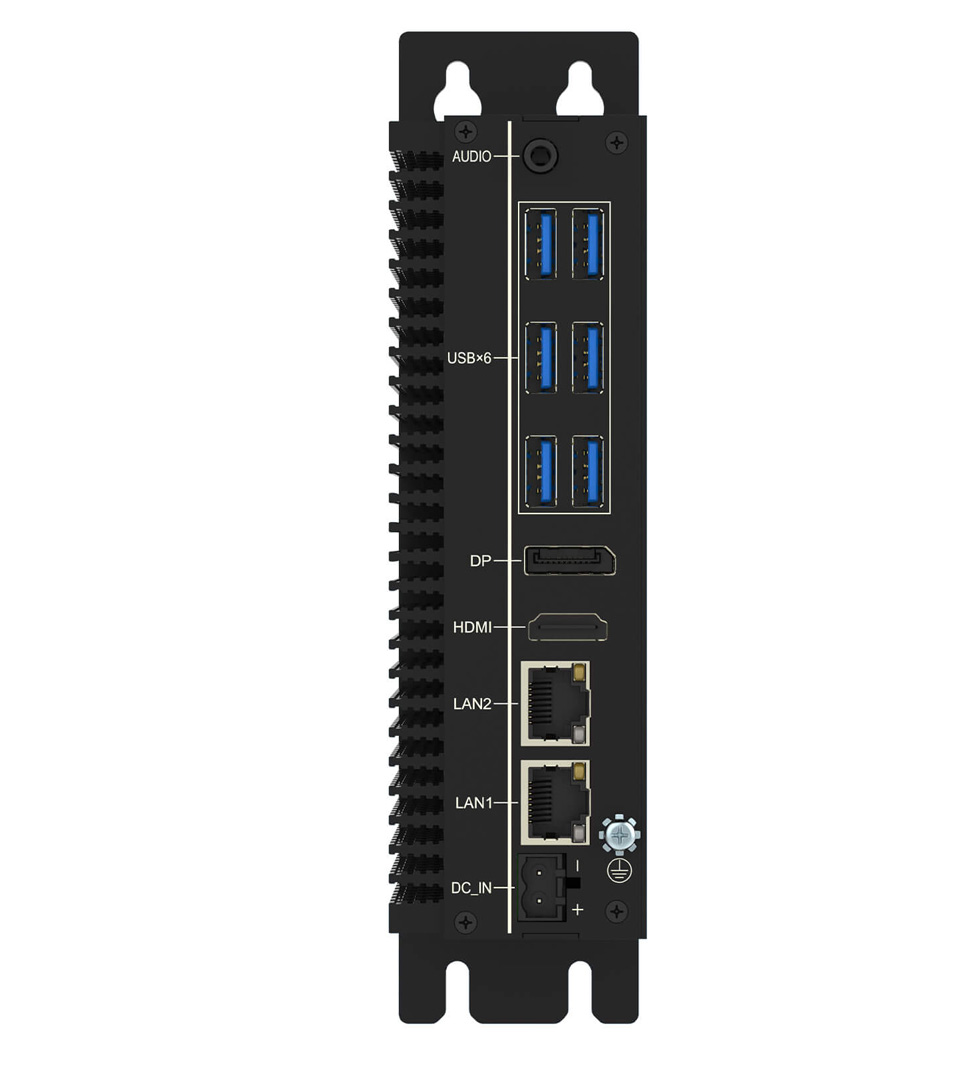

Built in a compact, wing-less aluminum chassis with all I/O ports on one side, the TBOX-6D25 is optimized for easy integration into control cabinets and space-constrained industrial environments. The fanless design ensures silent, reliable operation and long-term durability in demanding applications.

Key Features

• 12th Gen Intel® Core™ i5-1235U (2P + 8E cores) for high performance and low power consumption
• Slim fanless design with single-side I/O layout – ideal for control cabinets
• 1x DDR4 SO-DIMM (up to 32 GB RAM)
• 1x M.2 2280 NVMe SSD slot for fast storage
• 6x USB 3.0, 2x GbE LAN, 1x HDMI, 1x DisplayPort, Audio output
• 2x M.2 slots for Wi-Fi, Bluetooth or special expansion modules
• Automatic 12/24 V DC input via terminal connector
• Operating temperature: -20 °C ~ +60 °C
• Integrated TPM 2.0, compatible with Windows 10/11, Linux, and embedded OS

Applications

• Ideal for use in:
• Industrial control and automation
• Smart factory and IIoT solutions
• Embedded and edge computing
• Panel or cabinet mounting in demanding environments
