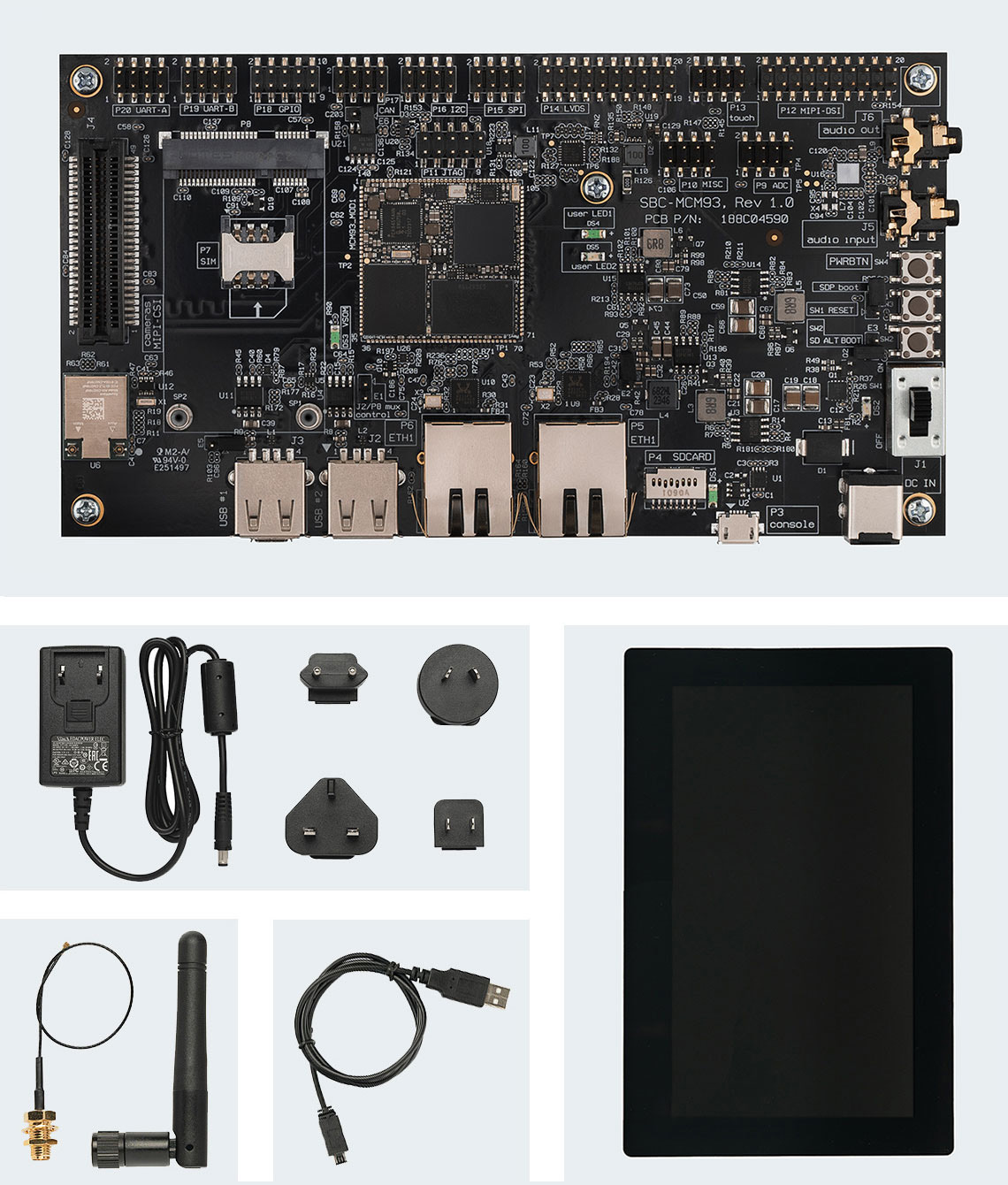

MCM-iMX93 Evaluation Kit
1.975,00 kr. 2.468,75 kr.
Complete development platform for the MCM-iMX93 System-on-Module, designed to accelerate evaluation, prototyping, and custom carrier-board design.
Includes:
- MCM-iMX93-C1700D-D2-N32 SoM
- SB-MCMIMX93 carrier board
- 12 V power supply, Wi-Fi antenna and cables
- Optional: 7" LVDS or 5" MIPI-DSI LCD panel
- Optional: Quectel EG25-G LTE modem
- Direct technical support from Compulab R&D engineers
Key Features
- Dual Gigabit Ethernet, 2× USB, integrated Wi-Fi & Bluetooth
- LVDS, MIPI-DSI, MIPI-CSI camera input, and analog audio
- mini-PCIe slot with SIM socket for LTE/4G modules
- UART, SPI, I²C, CAN-FD, ADC on standard 100-mil headers
- JTAG, Cortex-M33 debug console and NXP SDP/UUU port
Developer Benefits
- Full design package: schematics, BOM and PCB layout
- Proven reference platform for carrier-board development
- Free design review and driver adaptation for custom LCDs
- Direct engineering support from Compulab hardware team
Software & BSP
- Complete Board Support Package (BSP) with ready-to-run images
- Yocto Project, Debian Linux, and RTOS support
- Includes Linux kernel, U-Boot and device drivers
- Supports Docker, Microsoft Azure IoT, Node-RED, Mender OTA, and BalenaOS
Buy Product on Nord Technology website
Tilgængelig på restordre
Tilgængelig på restordre
If you have any inquiries, please do not hesitate to contact us.
Feel free to contact us by phone, email, or through the form.
