Giada EN-J6412DL Motherboard

Compact 3.5″ motherboard with Intel J6412, dual 4K display support & 7+ year lifecycle – ideal for kiosks, signage & IoT systems

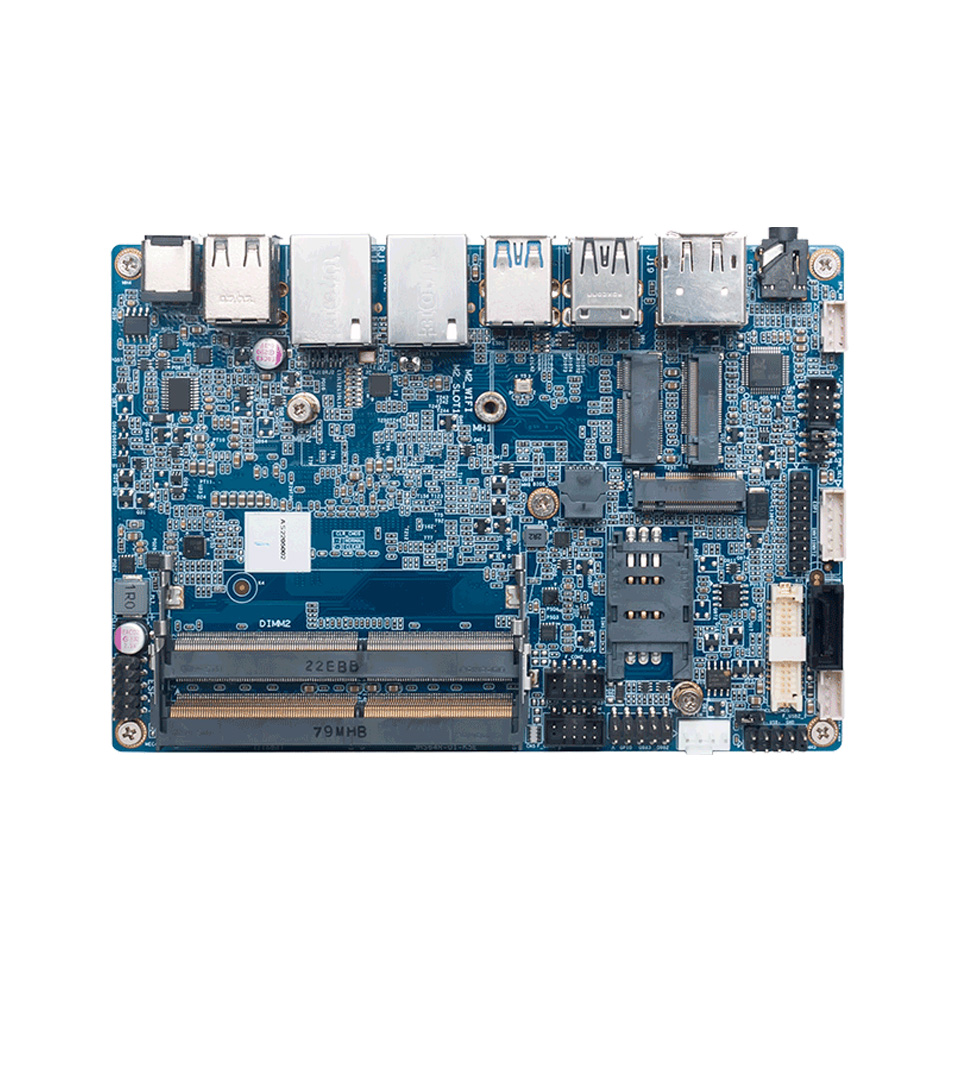

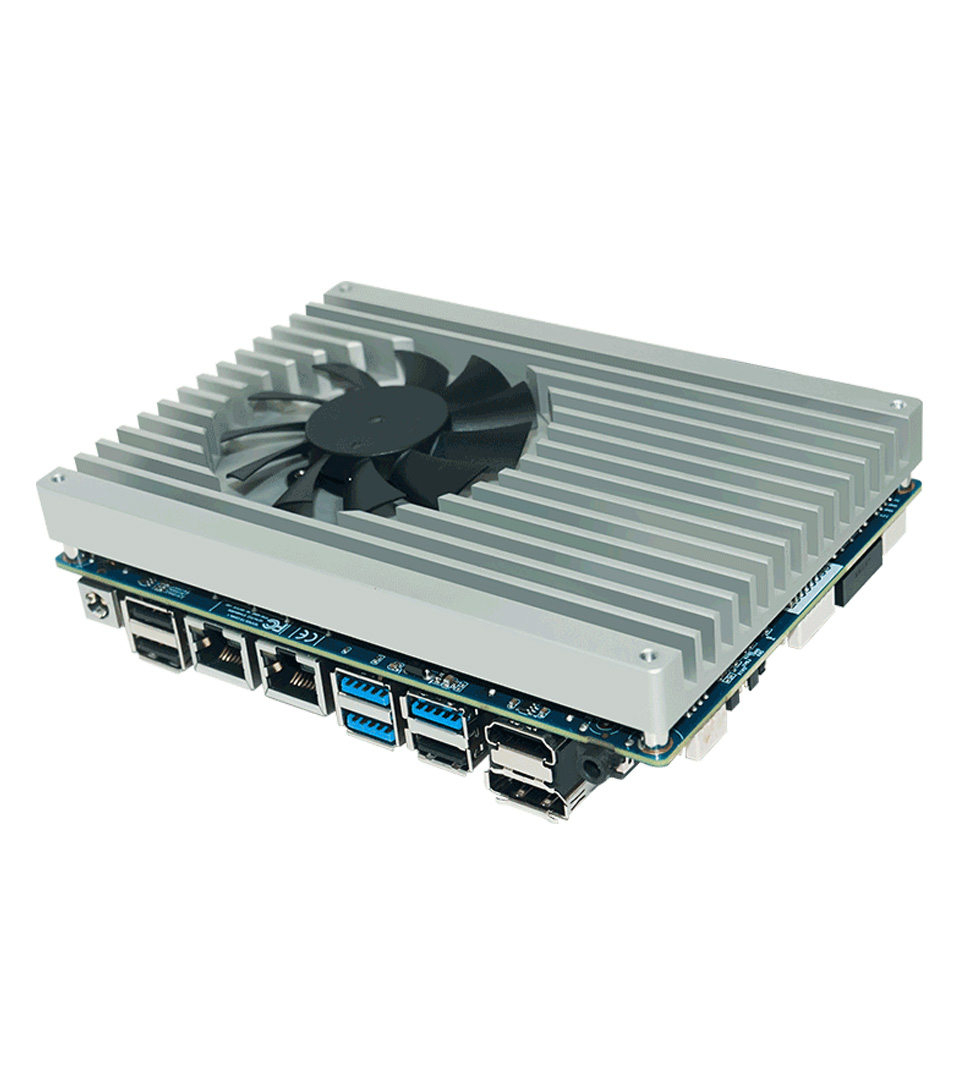

Giada EN-J6412DL – 3.5" Industrial Motherboard with Intel® Elkhart Lake CPU and Dual 4K Display Support

Reliable, Long-Lifecycle Embedded Motherboard for Industrial & IoT Applications

The Giada EN-J6412DL, is a compact 3.5” industrial motherboard built on Intel’s Elkhart Lake platform, offering long-term availability and improved performance for embedded and industrial systems. Powered by the efficient Intel® Celeron® J6412, it delivers a 7+ year lifecycle and is designed for IoT, automation, kiosks, edge computing, and digital signage.

With support for dual 4K video output, low power consumption, and enhanced single- and multi-thread performance, the EN-J6412DL is ideal for reliable 24/7 deployments.

Key Features

  • Processor: Intel® Celeron® J6412 (Elkhart Lake, 4-core)
  • Form Factor: 3.5” embedded motherboard
  • Long Life Cycle: 7+ years (based on Intel® IOTG roadmap)
  • Graphics: Integrated Intel® UHD Graphics (Gen 10)
  • Display Outputs:
    • 1x HDMI 2.0a (4096 × 2160 @ 60Hz)
    • 1x DisplayPort 1.2 (4096 × 2160 @ 60Hz)
  • Dual 4K Video Playback supported
  • Enhanced CPU performance:
    • Up to 1.7x better single-thread
    • Up to 1.5x better multi-thread (vs. previous gen)

Ideal For

  • Industrial and embedded PCs
  • Edge computing and smart controllers
  • Kiosks, POS systems, and signage players
  • IoT gateways and automation panels





Datasheet: Giada EN-J6412DL Motherboard

Additional information

Contact us:

Email: email@nordtechnology.dk

Classification Overview

Automation Controller, Edge Computer, Embedded PC, IoT Gateway

Design

Aluminium, Fanless, Mini, Semi-industrial

Operating Systems

Linux, Windows IoT, Windows Legacy

Processor

Intel® Atom / Embedded

Operating temperature

-20℃ to +60℃
